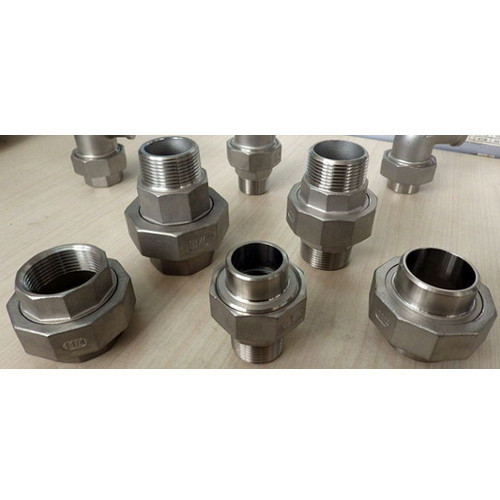

UNION FITTING FORGE
Short Description:
union is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. ; To join pipe to Valves and Fittings or to other sections of Pipe, Fillet-type seal welds be used. union forged fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
product detail
prodauct tag
product detail
SIZE
UNION FITTING FORGE SIZE: 1/8″ NB TO 6″ NB
CLASS: 2000LBS, 3000LBS, 9000LBS
STANDARD & MATERIALS:
ASTM A182 / SA182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L,
ASTM A312/A403 TP304, TP304L, TP316, TP316L
ASTM A105, A350 LF2
»NACE MR 0175
Dimension :
ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
TYPE:
SOCKET WELD,THREADED,NPT
