GLOBE VALVE
Short Description:
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve.SIZE
GLOBE VALVE Size: 1/2” ~ 48”
CLASS: ANSI 150~2500
STANDARD
API602,BS 1873 , ASME B16.34,DIN3202
MATERIAL
A182 F304,F304L,F316,F316L,F51
CAST CARBON STEEL, CAST STAINLESS STEEL, CAST DUPLEX STEEL,
»Materials with anti-corrosion properties according to Nace MR0175
ENDS CONNECTIONS:
Flanged(FF/ RF/RTJ), Buttweld, Socketweld,NPT
SIZE
GLOBE VALVE Size: 1/2” ~ 48”
CLASS: ANSI 150~2500
STANDARD
API602,BS 1873 , ASME B16.34,DIN3202
MATERIAL
A182 F304,F304L,F316,F316L,F51
CAST CARBON STEEL, CAST STAINLESS STEEL, CAST DUPLEX STEEL,
»Materials with anti-corrosion properties according to Nace MR0175
ENDS CONNECTIONS:
Flanged(FF/ RF/RTJ), Buttweld, Socketweld,NPT
TYPE
straight or “T” type

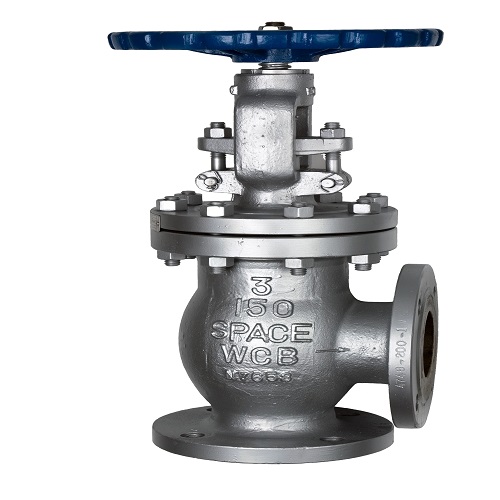

angle or “90 degrees”
Y pattern or “wye globe valve
straight or “T” type
angle or “90 degrees”
Y pattern or “wye globe valve
